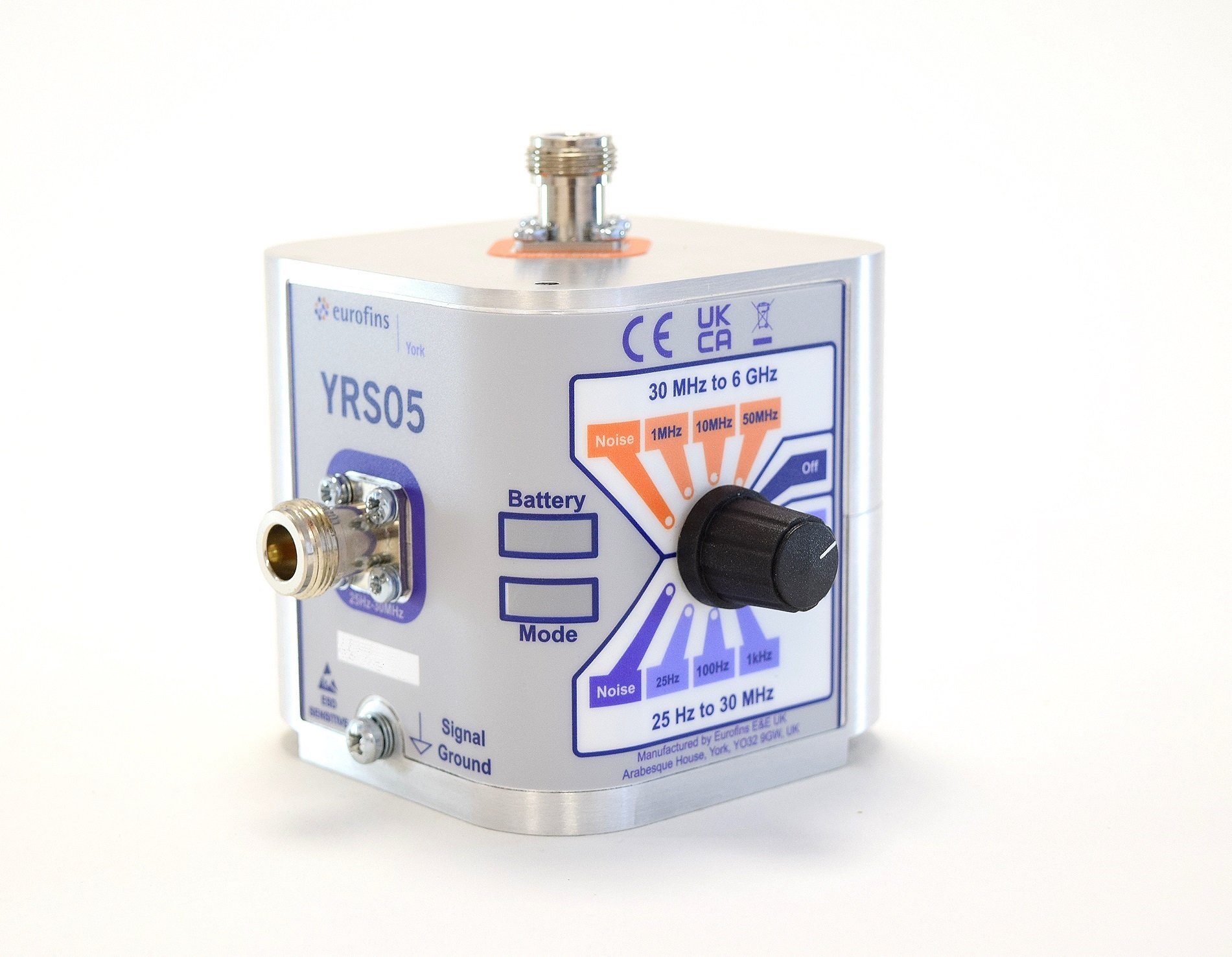

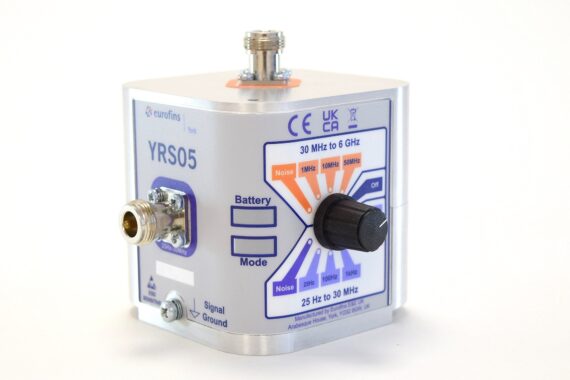

YRS05 York Reference Source – 25 Hz to 6 GHz
It is the ideal reference source for verifying and validating conducted and radiated measurement systems and in the investigation and characterisation of measurement environments such as Fully- or Semi-Anechoic chambers, and Open Area Test Sites.
The YRS05 is one of Eurofins E&E UK’s latest line of noise and comb reference sources, building on more than 30 years of experience in producing quality signal reference sources for EMC test laboratories.
The YRS05 can generate output signals covering 25 Hz to 6 GHz and combines both noise and comb signal capabilities in a single device. The YRS05 is battery-powered for standalone operation without additional power cables and features dual 50 Ω N-type output connectors for direct connection to conducted measurement systems.
For conducted emissions test systems, the optional NIA02 is a direct-coupling adapter providing an IEC 320 inlet for single-phase LISNs and a selection of 4 mm connections for general-purpose test applications.
A configurable monopole antenna and a monocone antenna are also available, allowing the YRS05 to be used as a standalone reference radiating source in an electromagnetic test environment or radiated emission test system such as a Fully- or Semi-Anechoic Room.
The YRS05 is compact, with its small size and shape designed to produce a uniform radiated field.
Features/Applications
Features
- 25 Hz to 6 GHz output
- Applications across a broad spectrum of uses
- Stable output
- Repeatable measurements
- Selectable noise or comb output
- Flexibility across a range of applications
- Compact and portable
- 85 x 85 x 85 mm, 0.8 kg
- Battery power supply
- No power cable effects on measurements
Applications
- Conducted and radiated measurement systems validation and verification
- Investigation and characterisation of different measurement environments such as Fully- or Semi-Anechoic chambers, Open Area Test Sites
- Reference source for:
- Regular pre-test checks as required to satisfy accreditation authorities and standards such as ISO 17025, DEF STAN 59-411
- Comparisons between test sites
- Long-term performance monitoring
- Investigation of screened room behaviour
- Cable loss measurements
- Evaluating component assembly characteristics e.g. filter loss, amplifier gain and bandwidth
- Spectrum analyser, receiver, antenna, and cable pre-checks
- Inter-laboratory and Proficiency Test programs
Specifications
YRS05 Specifications
General
Frequency range
- 25 Hz to 6 GHz direct connection into 50 Ω system
- 100 kHz to 6 GHz radiated using MON04 and MCN04 antennas
Temperature Stability
- < +/- 1 dB, 1 kHz to 1 GHz, at an ambient of 15°C to 30°C
- < +/- 1.5 dB, 1 kHz to 1 GHz, at an ambient of 5°C to 40°C
Time Stability
- < 1dB typical over 12 month period
Noise Modes
- Output Level see Graphs
Operating Time
- > 10 hours LF Noise mode typical with alkaline cells
- > 6 hours HF Noise mode typical with alkaline cells
Comb Modes
Comb Signal Step Size
- LF Comb mode 1 25 Hz comb 25 Hz, 50 Hz …………10 kHz
- LF Comb mode 2 100 Hz comb 100 Hz, 200 Hz ………50 kHz
- LF Comb mode 3 1 kHz comb 1 kHz, 2 kHz …………500 kHz
- LF Comb mode 4 10 kHz comb 10 kHz, 20 kHz ………5 MHz
- LF Comb mode 5 100 kHz comb 100 kHz, 200 kHz ……30 MHz
- HF Comb mode 1 1 MHz comb 1 MHz, 2 MHz …………300 MHz
- HF Comb mode 2 10 MHz comb 10 MHz, 20 MHz ………3 GHz
- HF Comb mode 3 50 MHz comb 50 MHz, 10 MHz ………6 GHz
Output Level
- 60 dBμV min. into 50 Ω system for ≥ 90% of combs in each range
Frequency Stability
- < +/- 30 ppm max, < +/- 10 ppm typ, at an ambient of 5°C to 40°C
Operating Time
- > 10 hours All modes, typical with alkaline cells
Other
Output Connectors
- 2 x 50 Ω N-type, LF: 1 kHz to 30 MHz and HF: 30 MHz to 1 GHz
Dimensions
- 85 mm x 85 mm x 85 mm excluding connectors and switches
Weight
- 0.75 kg excluding cells
Power Supply
- 4 x cells AA or equivalent, alkaline or rechargeable NiMH
Indicators
- Power Active, Cell Voltage Low, Replace cells
Mode Noise signal output, Comb signal output
Controls
- Rotary switch LF noise | LF comb modes | OFF | HF Comb modes | HF noise
Kits & Accessories
Standard Kits
All kits are supplied with
- Alkaline batteries
- Hard case
- CD or USB memory stick containing manual and calibration data
- CAL24 manufacturer’s test certificate showing output power from 25 Hz to 6 GHz measured using a spectrum analyser, all modes.
YRS05KIT1 – Standard YRS05 Kit
- YRS05 Reference Source
- MON04 monopole antenna

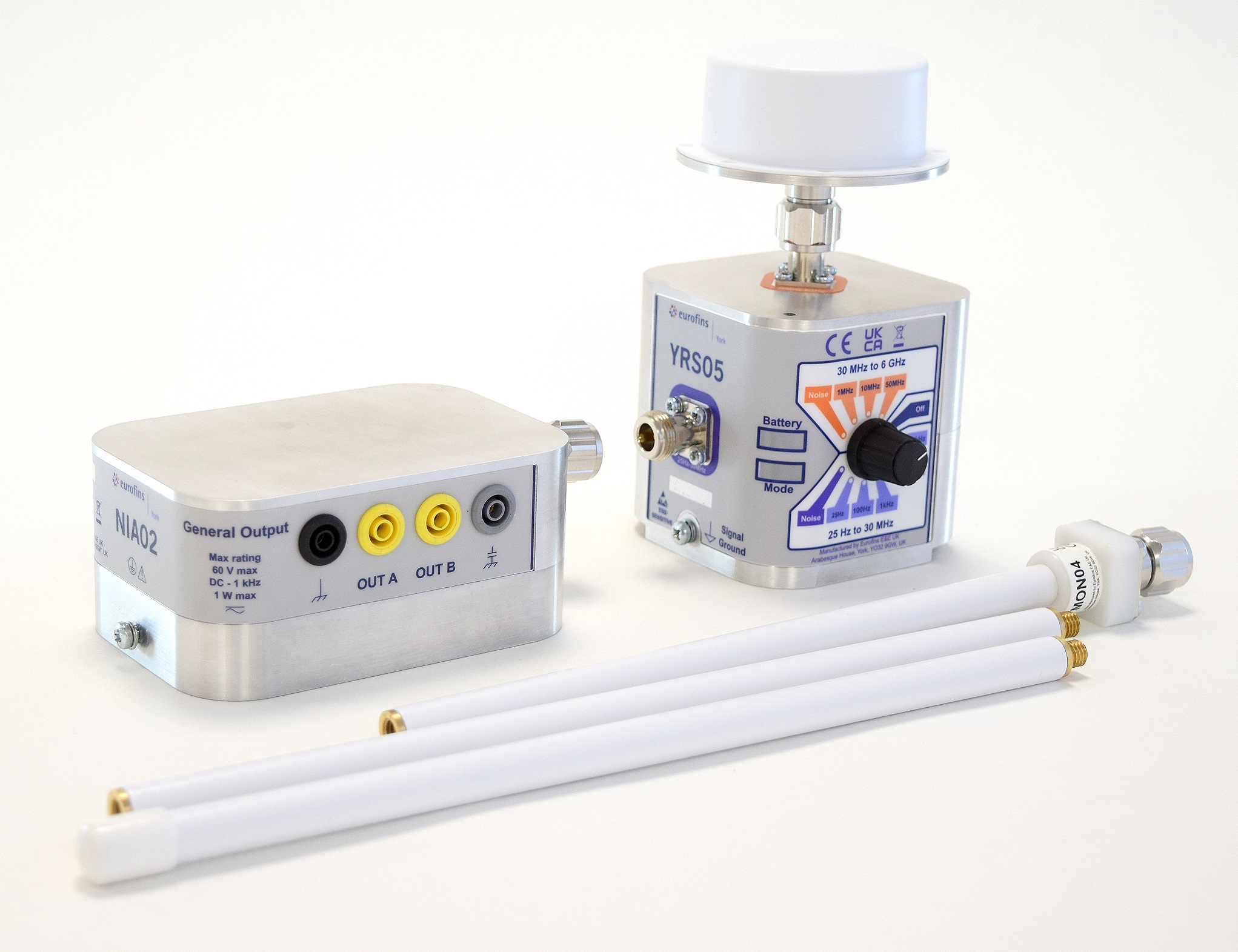

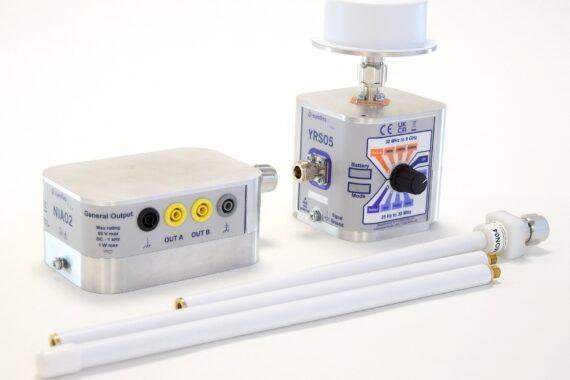

YRS05KIT2 – Enhanced YRS05 Kit
- YRS05 Reference Source
- MON04 monopole antenna
- MCN03 monocone antenna
- NIA02 coupling adapter
Accessories
- MON04 270 mm / 560 mm / 850 mm configurable monopole antenna
- MCN04 Monocone antenna, 1 GHz to 6 GHz (optimum), 85 mm diameter
- NIA02 LISN / ISN adapter with IEC 320 style connector and 4 mm socket connectors
