CCC01

Cable Coupling Clamp 01


CCC01 Cable Coupling Clamp

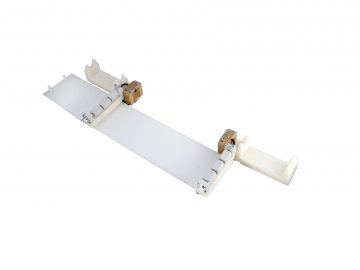

The image shown is of a CCC01

distributor-button

requestquote-button

  • Fixed cable routes
  • Cable injection assemblies
  • Supports a range of test cable sizes
  • 0.3 m & 0.5 m test lengths
  • Configurable injection conductor
  • Easy connection to test system


Downloads for this product:

CCC 01 Product Information

Test Instrumentation Range Brochure

Description

The Cable Coupling Clamp (CCC01) is a reusable test jig for the purpose of measuring the shielding properties of cables. The CCC01 is designed to allow easy positioning of the test and injection feed cables in accordance with the layout described in IEC 96-1 Amendment 2 1993-06. This simplifies the process of making repeatable measurements aimed at assessing the coupling and shielding effectiveness properties of a wide range of cables.

The CCC01 design is based on the details of the “launcher” arrangement, described in IEC 96-1 Amendment 2 1993-06 section A.5.6 Line Injection Method (frequency domain). This arrangement is also used in IEC 62153-4-6: 2006 and mandated for the line injection method in EN 50289-1-6.

Features


Fixed cable routesRepeatable layout of test and injection cables
Cable injection assembliesInjection cable runs are supplied pre-assembled and fitted with ferrite common mode chokes
Supports a range of test cable sizes2.5 mm, 5 mm and 10 mm aperture supports provided as standard. Cable dimensions up to 22 mm x 13 mm are possible with the user-machinable fitting accessories
0.3 m & 0.5 m test lengthsBase plate allows the injection assemblies to be mounted either for a 0.3m cable length (EN 50289-1-6) or the extended 0.5 m length  (IEC 96-1) for increased coupling distance
Configurable injection conductorSelf-adhesive copper tape, easily trimmed to the correct width required according to the circumference of the cable under test
Easy connection to test systemInjection cables are terminated in N-type connectors

Applications

  • Cable shielding effectiveness measurements as indicated by:
    • IEC 96-1 Amendment 2 1993-06
    • IEC 62153-4-6:2006
    • EN 50289-1-6
  • Investigation of cable coupling phenomena

Specifications

Frequency Range10 kHz to 1 GHz typical (usable to higher frequencies, depending on the cables
   being tested and application of the test)
Output connectors50 Ω N-type sockets
Cable sizesApprox. 2.5 mm to 10 mm diameter using the three sets of fittings supplied.
 User-machinable fittings available as accessories, supporting maximum of cable
  dimension of 22 mm x 13 mm (rectangular cross-section) or a 13 mm diameter
Dimensions220 mm × 880 mm (0.5 m test setting)
 220mm × 740mm (0.3m test setting)
Weight3 kg (typical excluding cable-under-test and any associated ferrites)



Standard Kits

Part Number

Description

Parts included

CCC01KIT01Standard CCC01 cablePair of pre-assembled cable injection assemblies
 coupling clamp kitBase plate with mounting positions for 0.3 m and
   0.5 m cable test lengths
  2.5 mm, 5 mm and 10 mm diameter cable mounting fittings
  Additional clip-on ferrite chokes
  Self-adhesive copper tape (signal injection conductor)
  Hard case for injection assemblies and accessories
  Manual

Please note: we are unable to supply the cable under test (CUT), any parts associated with its
construction and any ferrite rings to be fitted to it.

Accessories:

CMF01Kit of user-machinable blank fittings for custom cable apertures (single cable).
SpecialContact us for information regarding our testing service for cables to both IEC 96-1
 and EN 50289-1-6, using the CCC01.

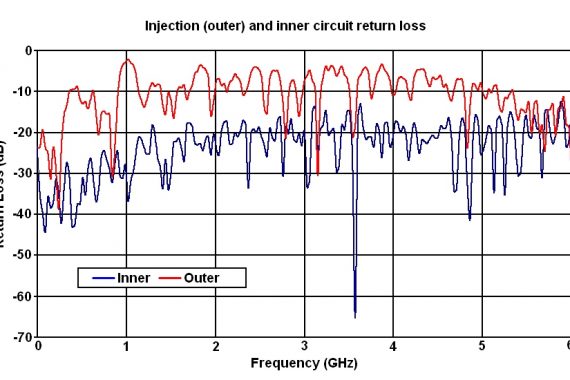

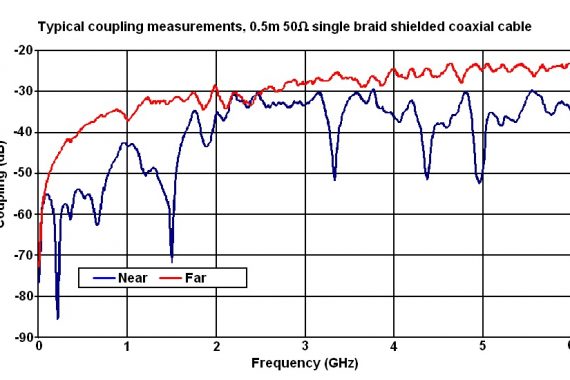

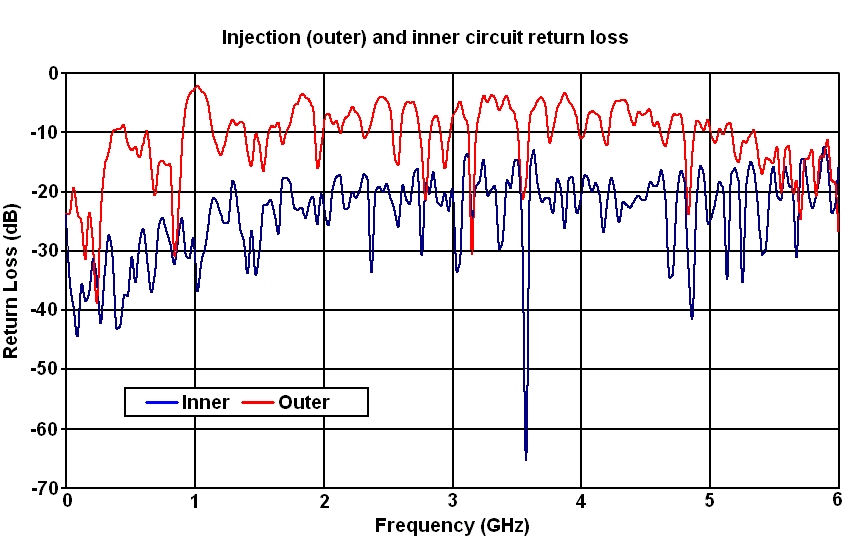

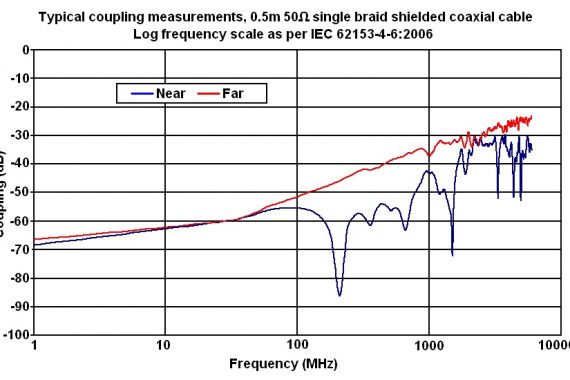

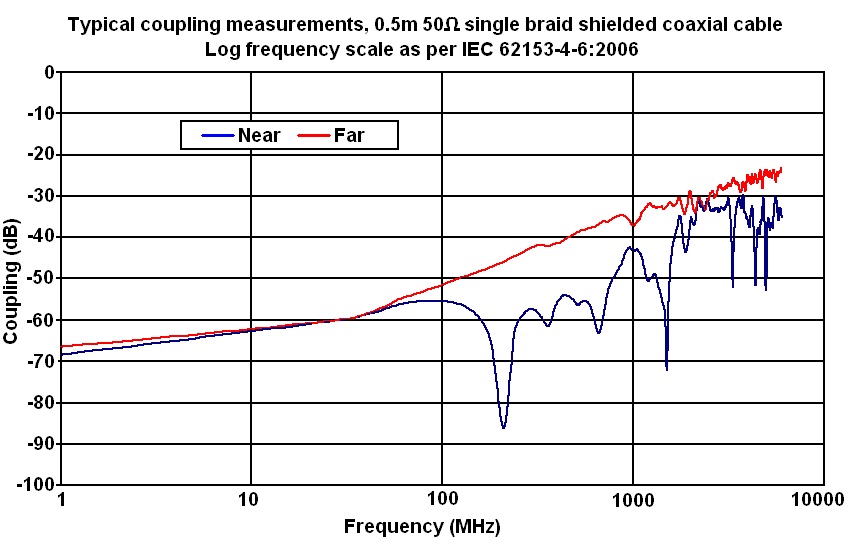

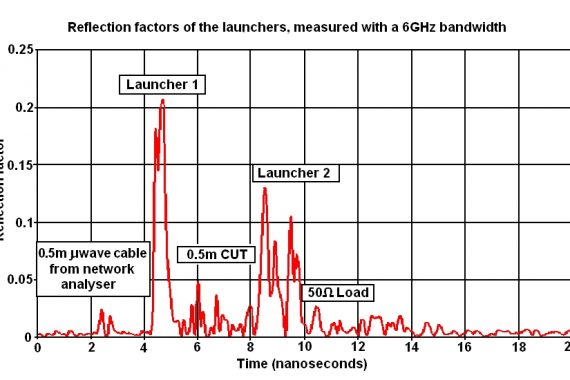

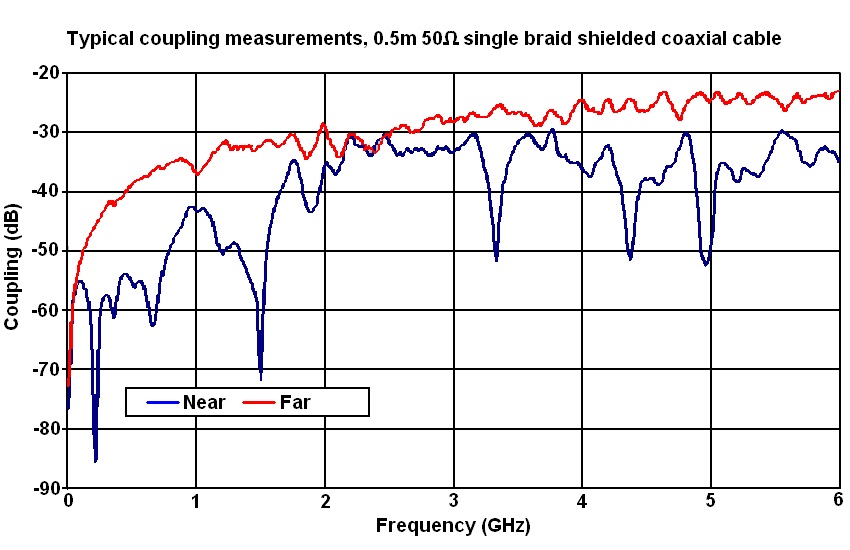

Example Output Measurement Results
